Easyflex VibraSystems Vertical in-line Pump Stands

Description

PS –  Pump Stands are commonly used in the industry to give structural support to vertical in-line pumps while providing isolation from minor vibrations.

The new line of Vibrasystems’s Vertical in-line Pump Stand has a solid, heavy-duty welded reinforced steel frame, an elastomer bearing pad, and two bridge-bearing bushings. PS’s frame is powder-coated for corrosion protection. The elastomer bearing pad provides excellent isolation from transferring vibrations to pump stands. The bridge-bearing neoprene washer bushings isolate anchor bolts from the pump stand metal frame.

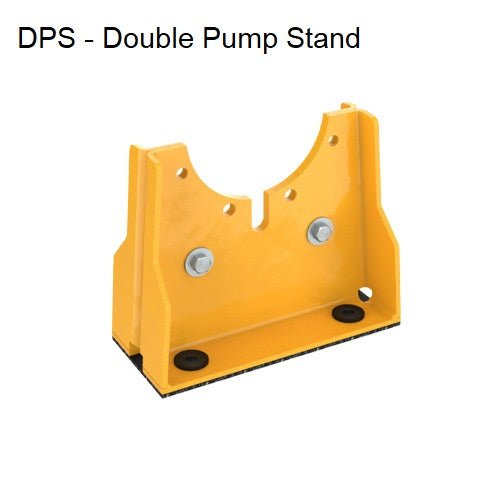

DPS – Double Pump Stand consists of two PS Pump Stands bolted together.

This installation is recommended for extra heavy in-line vertical pumps where an increase in structural rigidity is required and for installation in seismic active zones.

Recommended for:

Vibrasystem’s Vertical in-line Pump Stands are designed for Vertical in-line pumps ranging from 2” to 8” pump’s flange size. Pump Stand’s holes are designed to match cast iron flange dimensions ANSI class 125.  Double Pump Stands (DPS models) are recommended for extra heavy vertical in-line pumps to increase stability and protect from seismic force
